Description:Vibrating sieve is designed as a high-precision screening machinery.It is usually used to grade the different sizes material,and it can be customized as your all request.

Contact Supplier Purchase Process

Features

Overview:

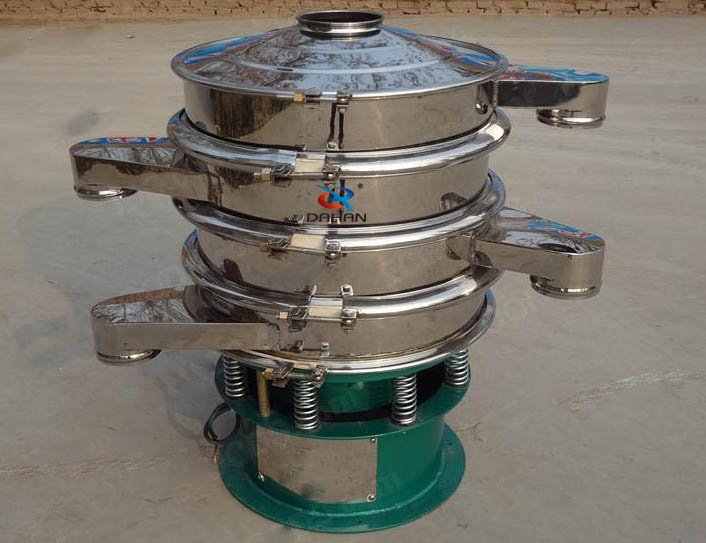

Vibrating sieve is designed as a high-precision screening machinery. The power plant is composed of vertical motor,and eccentric weight installed at two ends.We can produce horizontal, vertical, inclined motions by adjusting the upper and lower eccentric weight.We have standard vibrating sieve machine and we can design machine as client's request,such as inlet hopper,inspection window,valve to control matering outflow and other requests.

Machine sort and applications.

According to the number of layers:

According to the material of the machine.

Applications:

Working principle:

For vibrating sieve Its vertical motor, which is installed eccentric hammers on the top and bottom, is regarded as a vibratory source. The eccentric hammers change rotation into horizontal, vertical and inclined movement, and then pass the movement to the sieving surface. Adjusting the phase angle on the top and bottom can change trajectories of the materials on the sieve.

Selection and parameters：

Note:
The voltage and power in the table can be customized according to your request to adapt your machine working environment.
The capacity in the table is tested in the following cases:the name of raw material is sand with 4 mesh screen.If you want to know specific capacity,please tell us your material and its property.

Dimension of machine parts:
