Screen mesh is vulnerable parts, in order to replace the screen conveniently, vibrating screen manufacturers continue to improve the technic, the most commonly used vibrating screen frame structure for the cluster-type dual-network structure (U-groove) structure design, it is long life, mesh deformation, the biggest feature is changing screen just need 3-5 minutes.

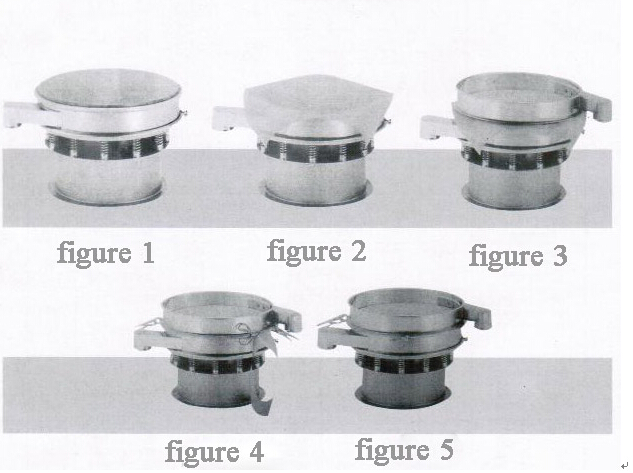

Vibrating sieve mother-in dual-network structure is quick changing network structure, the mother of 8 mesh network care network, network subnet for work, such as installation or replacement required subnets, please refer to the following steps:
1, Remove the layer beam ring will screen frame can be removed, the other parts do not move.
Vibrating sieve mother-in dual-network structure is quick changing network structure, the mother of 8 mesh network care network, network subnet for work, such as installation or replacement required subnets, please refer to the following steps:
1, Remove the layer beam ring will screen frame can be removed, the other parts do not move.
2, Remove the clamp damaged work network, then the new mesh tile in the master card online to start paving the clamps tight.
3, Cut the excess reserve two kilograms outer screen.
3, Cut the excess reserve two kilograms outer screen.
4, And then install the screen frame, locking ring beam can be completed.
Dahan brand vibration screen features: a good airtight performance, easy accessibility, easy to clean inside and outside, the discharge port can be adjusted 360 degrees, a variety of screen cleaning device, low energy consumption, low noise, no foundation installation, widespread application majority of powders, granules, liquids and other industries.
