How to adjust exciting force of vibrating motor

10/16/2015

Three-D vibrating sieve application is very wide. During the working, due to screen material transformation or the change of the trajectory, we all need to adjust phase angle by eccentric block. For example, when the phase angle is 5 °, materials go though secondary classification. When the phase angle is 15 ° materials go though dry and wet operations. When the phase angle is 15 °, movement trajectory of materials is the longest, it can screen fine powder and micro powder. According to different material and different screen layer to adjust the phase angle.

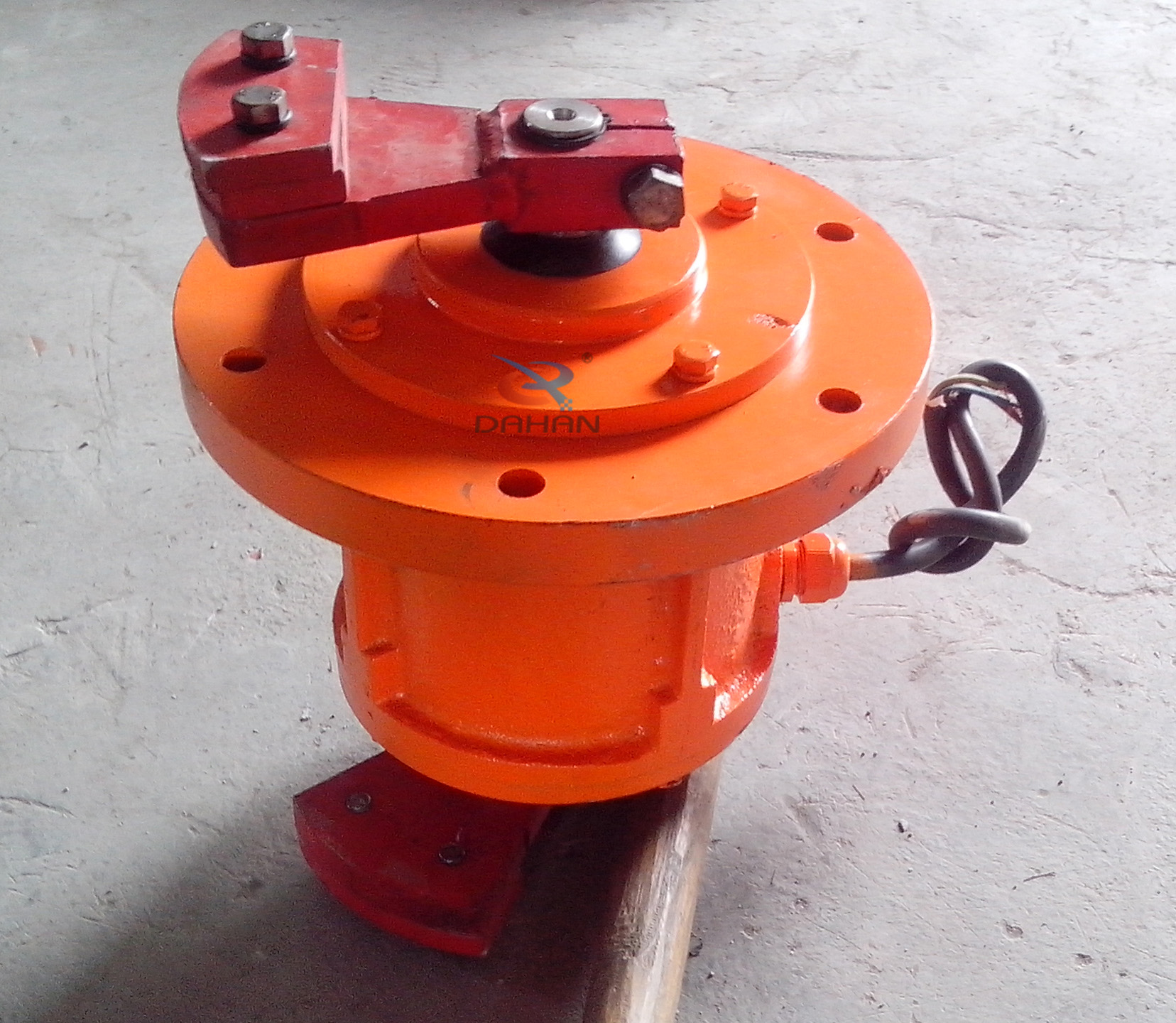

Adjust the phase angle, you need to loose bottom frame then move to one side. You will see vibrating motor in the machine body, remove vibrating motor carefully, loose the eccentric block retaining bolt. According to the dial on the motor to adjust the phase angle, then put back the motor, tighten the bolt. There is another method: Adjust the additional weight  on vibration motor (next to eccentric block). This will increase vibration force so as to achieve screening effect.
